Test demo version: 4.30 (Bohol)

BE2WORKS software discussion forum

Test demo version: 4.30 (Bohol)

Postby jjavivi » Tue Nov 14, 2017 7:41 pm

Hi, I want to try the demo version (Demo version: 4.30 (Bohol)) with a battery dell R2J240, what operation allows the demo version, read and write? What is your limitation? I have not seen the drivers for the adapter, are they necessary?, I have thought to use the following adapter that I have read in the forum that is compatible:


Regards
jjavivi

Posts: 2
Joined: Tue Nov 14, 2017 7:08 pm

Re: Test demo version: 4.30 (Bohol)

Postby admin » Tue Nov 14, 2017 7:46 pm

This module is good for BE2Works.
But you can't read and reset R2J240.
You can read only battery data with demo.

Drivers are not needed.
User avatar
admin
Site Admin

Posts: 795
Joined: Thu Jul 09, 2009 6:27 pm

Re: Test demo version: 4.30 (Bohol)

Postby jjavivi » Tue Nov 14, 2017 9:03 pm

admin wrote:This module is good for BE2Works.
But you can't read and reset R2J240.
You can read only battery data with demo.

Drivers are not needed.


Why can not I read and reset R2J240.?
Do you mean with the module adapter or do you mean the demo version?

Regards.
jjavivi

Posts: 2
Joined: Tue Nov 14, 2017 7:08 pm

Re: Test demo version: 4.30 (Bohol)

Postby admin » Wed Nov 15, 2017 6:24 am

Because of DEMO.
Full wersion will work: https://youtu.be/JxnUUPeYId0
User avatar
admin
Site Admin

Posts: 795
Joined: Thu Jul 09, 2009 6:27 pm

Re: Test demo version: 4.30 (Bohol)

Postby mitko_flash » Wed Nov 15, 2017 9:43 am

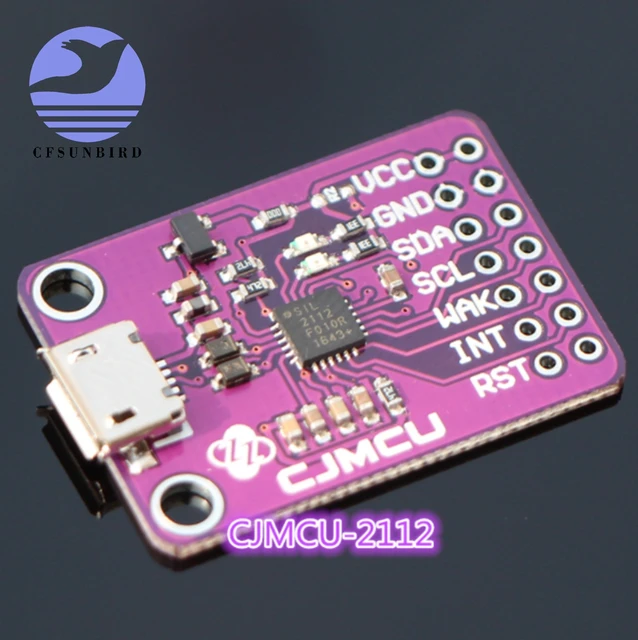

Perfect, I ordered the same pink board with cp2112.
When it arrive, i will try to read a Dell inspiron 910 battery(type w953G with bq20889 and bq29330 chips). I changed the bad cell of it that had 0volts. I didn't read about this controler and guess the controller locked(sealed) itself.
I already read the battery info with another program, with the adapter that I made myself(LPT to I2c with 7405 scheme). I try to read it with be2works2.82.demo.LPT that i saw in the archive but couldn't. I guess the version is not compatible with this 7405 LTP adapter. Am I right?
Best Regards
Dimitar
mitko_flash

Posts: 10
Joined: Wed Nov 15, 2017 9:28 am

Re: Test demo version: 4.30 (Bohol)

Postby admin » Wed Nov 15, 2017 10:26 am

I guess the version is not compatible with this 7405 LTP adapter.


It's compatible with the adapter based on 74LS05
User avatar
admin
Site Admin

Posts: 795
Joined: Thu Jul 09, 2009 6:27 pm

Re: Test demo version: 4.30 (Bohol)

Postby mitko_flash » Wed Nov 15, 2017 12:30 pm

Thank you admin.
Nice to read this. So I will try to make it work then.
I install the lpt version of be2works no problem. When run the program for the first time there is message in Loading screen like this one:

When I click ok, the program loads and the A indication in bottom left is green, B and C are Red. Tried to read the battery- no result.

Then tried to install DLPortIO x64 for my windows 7 x64. After the install of the driver the A indication go to Red.
I know it should be green.
Where I mistake. The hardware should be ok.
Regards
mitko_flash

Posts: 10
Joined: Wed Nov 15, 2017 9:28 am

Re: Test demo version: 4.30 (Bohol)

Postby admin » Wed Nov 15, 2017 1:17 pm

Driver is not loaded.
You must to restart yoyr PC to load driver.
User avatar
admin
Site Admin

Posts: 795
Joined: Thu Jul 09, 2009 6:27 pm

Re: Test demo version: 4.30 (Bohol)

Postby mitko_flash » Wed Nov 15, 2017 1:21 pm

I did the restart after program installation.
I did the restart after installing the driver.
Is there manual how to install drivers?
mitko_flash

Posts: 10
Joined: Wed Nov 15, 2017 9:28 am

Re: Test demo version: 4.30 (Bohol)

Postby admin » Wed Nov 15, 2017 1:28 pm

Probably the driver can't work under 64-bit system.
User avatar
admin
Site Admin

Posts: 795
Joined: Thu Jul 09, 2009 6:27 pm
